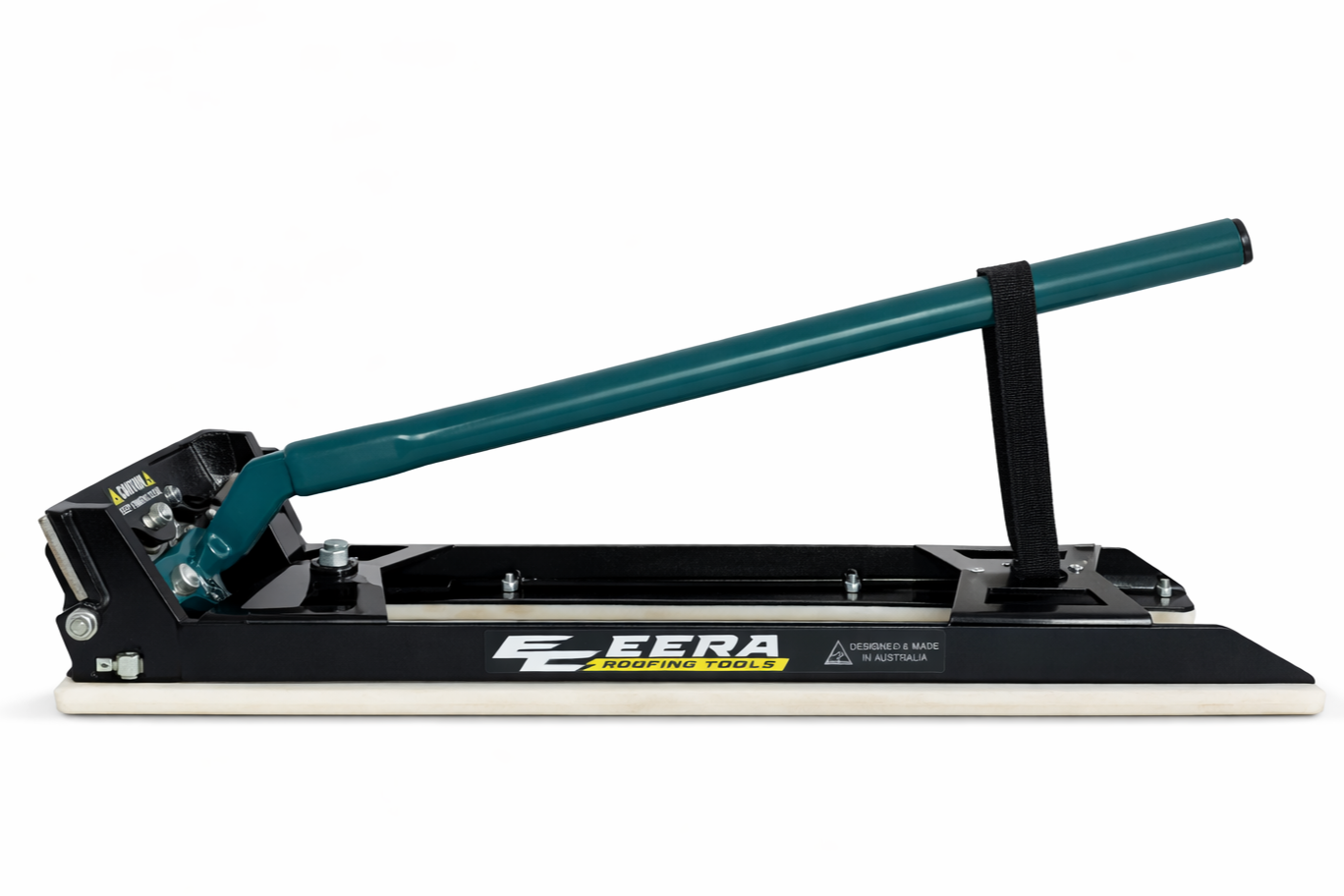

PRODUCT SPECIFICATIONS
Compatible profile - Corrugated roof metal sheets, Custom Orb, Standard Corrugated
Rib height (mm) - 18
Cutting capacity – Galvanized steel (mm) - Up to 1
Cutting capacity – Pre-painted steel (mm) - Up to 1
Notch width (mm) - 172.4 at base – 25mm radius (2.5 ribs cut per notch)
Notch height (mm) - 18
Operation type - Manual lever
Cutting tolerance (mm) - +/- 0.5
Blades - High-strength hardened steel
Replaceable - Yes
Sharpenable - Yes
Dimensions (L × W × H) (mm) - 580 × 190 × 190
Net weight (kg) - 11.5
Product Code - COR001
RECOMMENDED ANGLE OF FOLD FOR FLASHING/TRIM - 65° (on a sheetmetal folder) AT 18MM LONG
