PRODUCT SPECIFICATIONS
Compatible profile - LOKDEK 680
Rib height (mm) - 40
Cutting capacity – Galvanized steel (mm) - Up to 1
Cutting capacity – Pre-painted steel (mm) - Up to 1
Notch width (mm) - 38 at base – 16 at top
Notch height (mm) - 40
Operation type - Manual lever
Cutting tolerance (mm) - +/- 0.5
Blades - High-strength hardened steel
Replaceable - Yes
Sharpenable - Yes
Dimensions (L × W × H) (mm) - 560x130x150
Net weight (kg) - 6
Product Code - LOK71

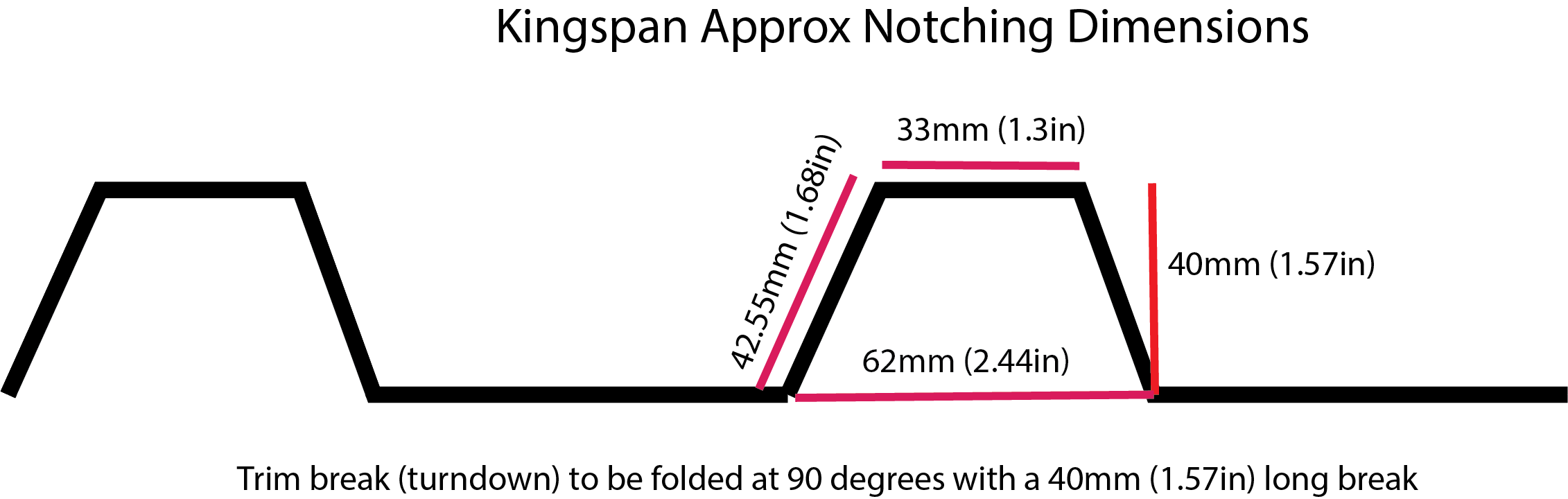

RECOMMENDED ANGLE OF FOLD FOR FLASHING/TRIM - 90° (on a sheetmetal folder) AT 40MM LONG
