PRODUCT SPECIFICATIONS
Compatible profile - Prodek
Rib height (mm) - 40
Cutting capacity – Galvanized steel (mm) - Up to 1
Cutting capacity – Pre-painted steel (mm) - Up to 1

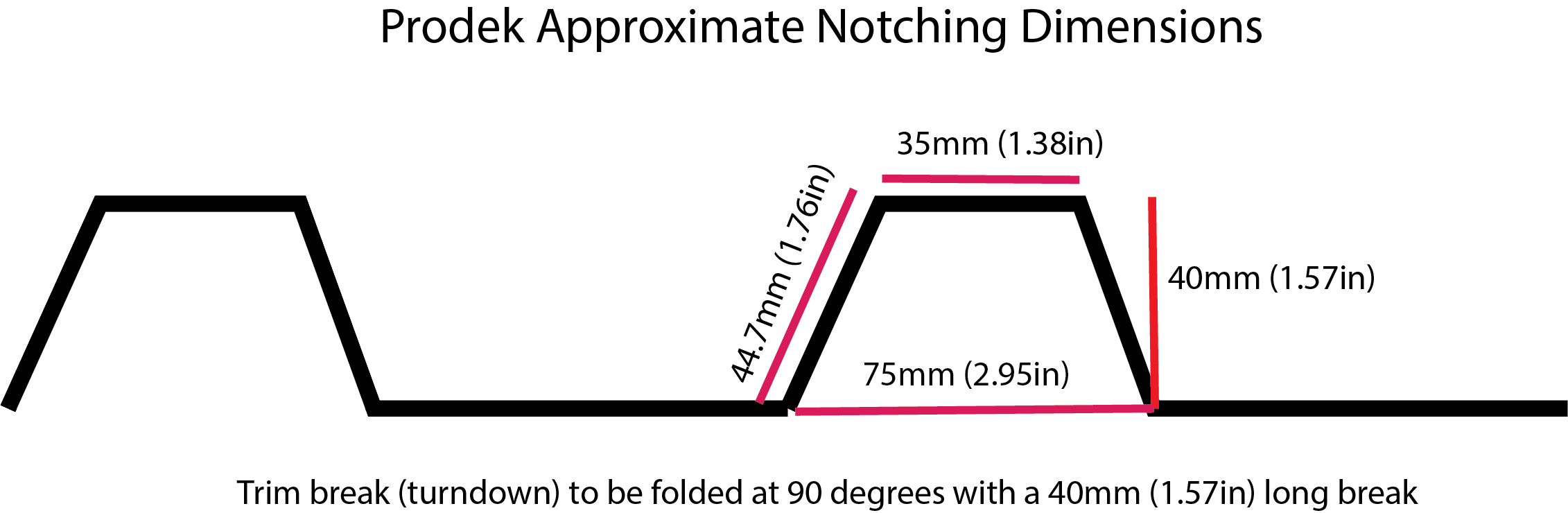

Notch width (mm) - 75 at base – 35 at top
Notch height (mm) - 40
Operation type - Manual lever
Cutting tolerance (mm) - +/- 0.5
Available to cut hips- No
Blades - High-strength hardened steel
-Replaceable - Yes
-Sharpenable - Yes
-Interchangeable - No
Dimensions (L × W × H) (mm) - 560 × 130 × 150
Net weight (kg) - 6
Product Code - PRO-67
RECOMMENDED ANGLE OF FOLD FOR FLASHING/TRIM - 90° (on a sheetmetal folder) AT 40MM LONG
