PRODUCT SPECIFICATIONS
Compatible profile - Rolltop Corrugated roof metal sheets, Custom Orb, Standard Corrugated
Rib height (mm) - 18
Cutting capacity – Galvanized steel (mm) - Up to 1
Cutting capacity – Pre-painted steel (mm) - Up to 1

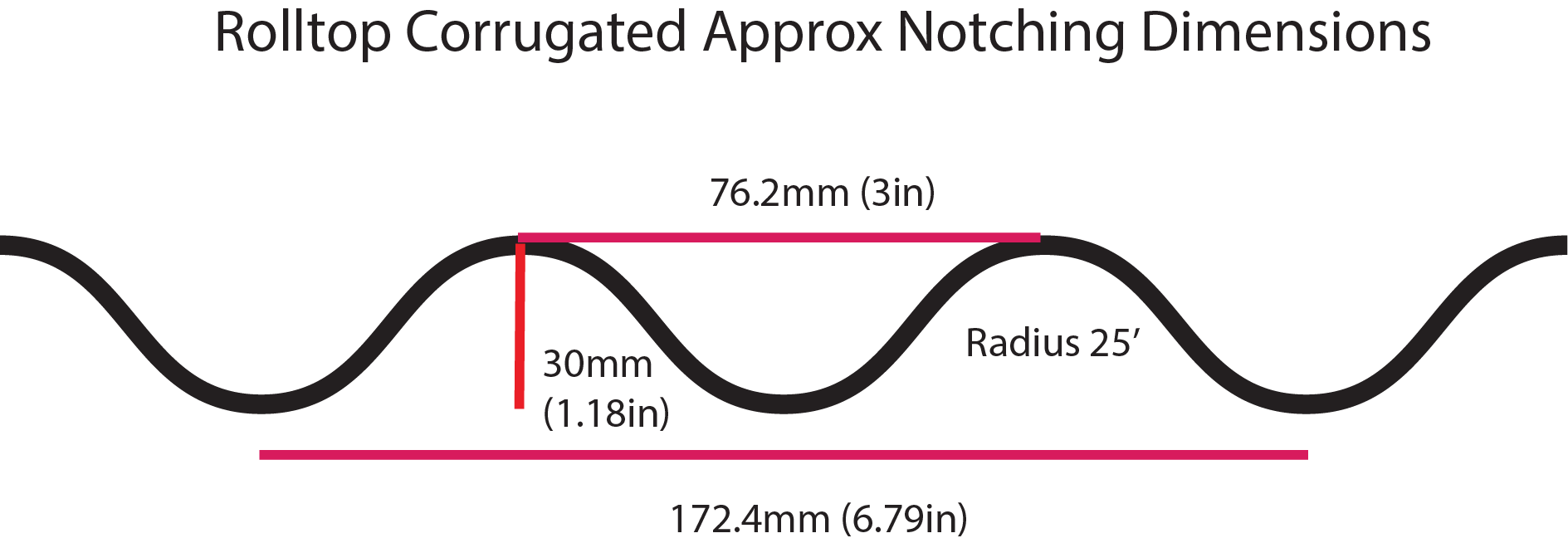

Notch width (mm) - 172.4 at base – 25mm radius (2.5 ribs cut per notch)
Notch height (mm) - 30
Operation type - Manual lever
Cutting tolerance (mm) - +/- 0.5
Available to cut hips - No
Blades - High-strength hardened steel
-Replaceable - Yes
-Sharpenable - Yes
-Interchangeable - No
Dimensions (L × W × H) (mm) - 580 × 190 × 190
Net weight (kg) - 8kg
Product Code - ROL004
