ROLLTOP RIDGE CORRY NOTCHER

Purpose-built for Corrugated roofs using rolltop ridge with a 30mm long break. Because close enough isn't good enough.

Every EERA Notcher is designed around a specific roof profile.

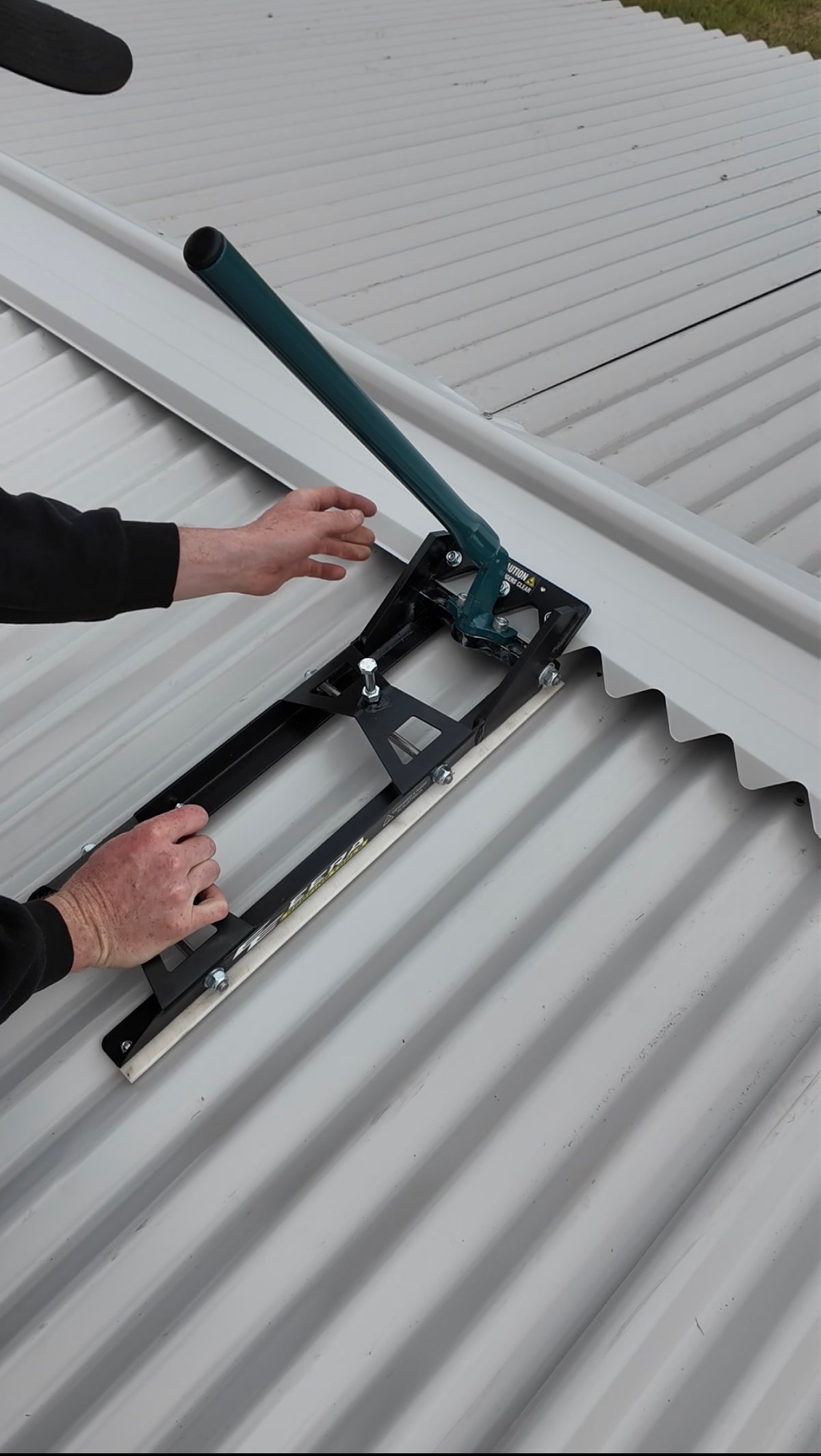

The Corry Rolltop Flashing Notcher is shaped specifically for Corrugated roof sheets, allowing the tool to self centralise in the valley of the ribs and locate itself into position before cutting.

No measuring. No marking. Just position and cut.

Entallador de chapa ondulada Rolltop

$1,390.00 AUD
Shipping calculated at checkout.

Ten en cuenta que nuestro Notcher Rolltop requiere un poco más de paciencia; prueba tu primer corte en un poco de rolltop de desecho para familiarizarte con su uso. Debido al borde antiarañazos, pueden esperarse pequeños defectos.

Notcher para remates (también conocido como cortador de remates, punzonadora de remates)

Nuestros Notchers están diseñados para revolucionar la industria de la cubierta. Ideales para chapas metálicas de cubierta corrugadas, Custom Orb, Rolltop Corrugado, esta herramienta innovadora reduce significativamente el tiempo dedicado a realizar muescas en los remates.

¿Buscas corrugado estándar? Míralo AQUÍ

  • Mayor eficiencia: Trabaja hasta 3 veces más rápido que con las tijeras de hojalatero estándar*
  • Construcción duradera: Cuenta con cuchillas reemplazables y un mango con recubrimiento en polvo para un rendimiento duradero
  • Cortes precisos: El diseño que se adapta a las nervaduras se ubica automáticamente en el perfil, por lo que no es necesario medir ni marcar; solo coloca y corta.
  • Fabricado con orgullo en Australia: Diseñado y fabricado al 100 % en Warrnambool, Victoria.

Ahorra horas y mejora tu productividad con esta herramienta esencial para cubiertas.

Quantity

SAVE TIME

Reduce the hours spent hand-cutting repetitive ridge profiles.

GET THE SAME CUT

The tool follows the roof profile to help produce a repeatable result across the entire run.

FREE UP YOUR EXPERIENCED CREW

Once the correct tool is matched to the correct profile, repetitive cutting becomes simple enough for less-experienced team members to handle.

12 MONTH WARRANTY

Every EERA Notcher comes with a 12-month warranty.

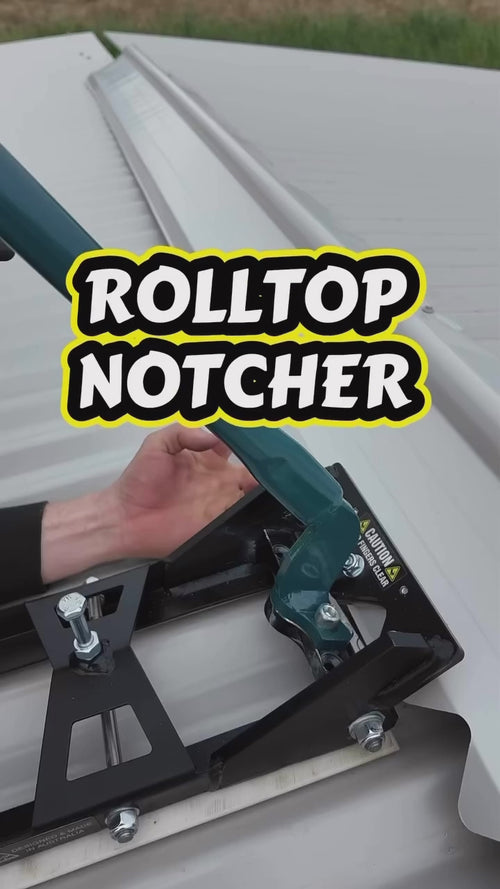

SEE HOW SIMPLE IT IS.

The profile-specific body does the positioning work, helping your team produce repeatable cuts without manually scribing every profile.

STANDARD CORRUGATED OR ROLLTOP RIDGE?

This product is designed specifically for Corrugated roofs using rolltop ridge with a 30mm long break.

If you're working with Standard Corrugated / Custom Orb flashing, you require the dedicated Corrugated Notcher instead.

Because both products suit corrugated roof profiles but are designed for different flashing and ridge applications, choosing the correct version matters.

The blades cannot simply be interchanged because the body of each tool is shaped around its specific profile and cut.

If you're unsure which one you need, use the EERA Profile Finder or get in touch before ordering.

Product Specifications

Compatible profile - Rolltop Corrugated roof metal sheets, Custom Orb, Standard Corrugated
Rib height (mm) - 18
Cutting capacity – Galvanized steel (mm) - Up to 1
Cutting capacity – Pre-painted steel (mm) - Up to 1
Notch width (mm) - 172.4 at base – 25mm radius (2.5 ribs cut per notch)
Notch height (mm) - 30
Operation type - Manual lever
Cutting tolerance (mm) - +/- 0.5
Available to cut hips - No
Blades - High-strength hardened steel
-Replaceable - Yes
-Sharpenable - Yes
-Interchangeable - No
Dimensions (L × W × H) (mm) - 580 × 190 × 190
Net weight (kg) - 8kg
Product Code - ROL004

Materials & Care

Made in Warrnambool. Backed for 12 months.

Designed and built by EERA using more than 20 years of machining, manufacturing and sheet-metal machinery experience.

Includes a 12-month warranty, with sharpenable and replaceable blades available.

Shipping

Most current orders leave our workshop within one business day.

Because every EERA Notcher is handmade and assembled by our team, please allow up to five business days for processing during busy periods.

Standard delivery: generally 5–10 business days

Express delivery: generally 1–3 business days

Need it for an upcoming job?

Contact EERA and we'll confirm current availability.

STILL NOT SURE IT'S THE RIGHT ONE?

Don't guess.

Use the EERA Profile Finder or send us your profile details and we'll help you identify the correct Notcher before you order.
