Entalladora para panel Ag

$1,740.00 AUD
Shipping calculated at checkout.

Enviamos directamente desde Kentucky, EE. UU.. ¡Consulta www.eeraroofing.com para hacer tu pedido!

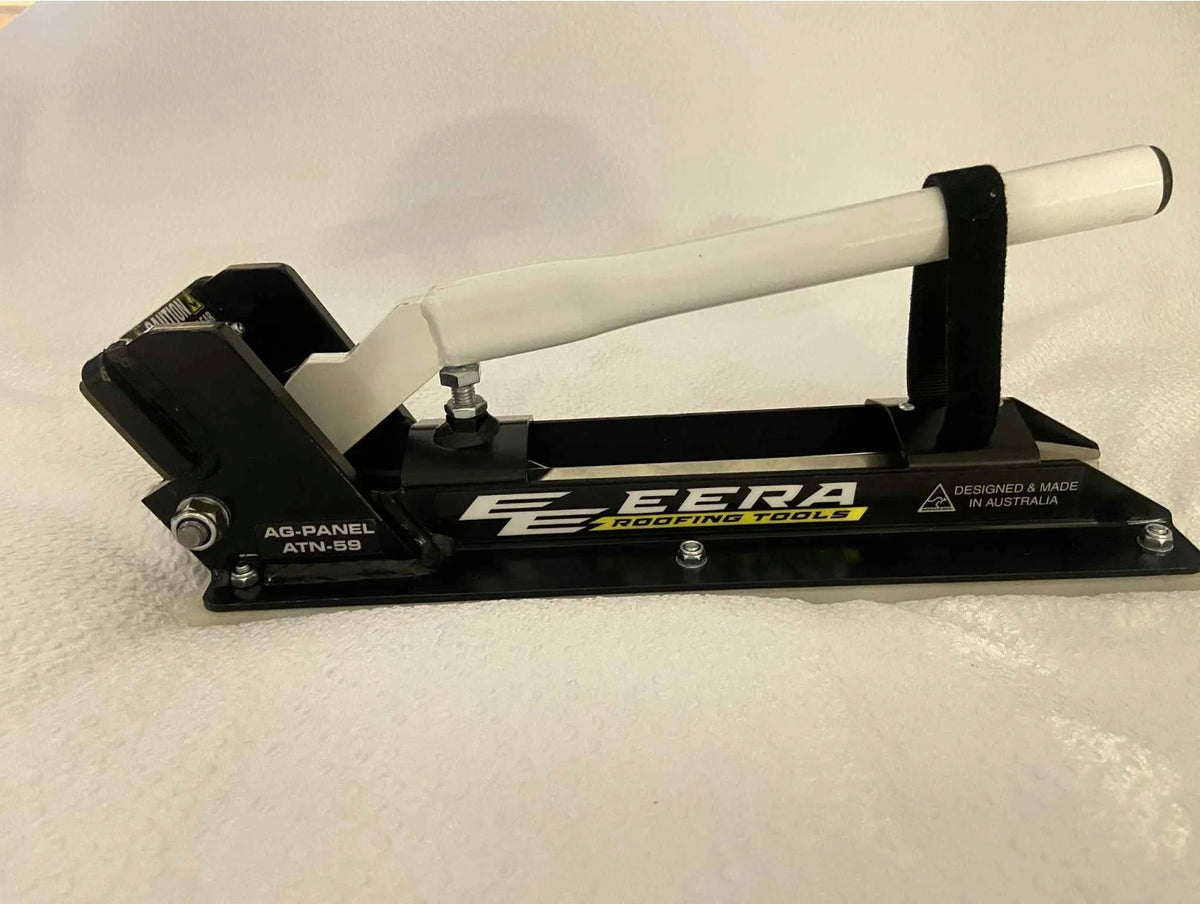

Entalladora (también conocida como cortadora de remates, perforadora de remates)

Nuestra entalladora está diseñada para revolucionar la industria de los techos.

Ideal para paneles Ag (panel acanalado, panel de 5 nervaduras, panel Classic, Tuff Rib, Sturdi Panel, Grand Rib, G-Rib), esta innovadora herramienta reduce significativamente el tiempo dedicado a entallar remates.

  • Mayor eficiencia: Trabaja hasta 3 veces más rápido que con las tijeras para hojalata estándar*
  • Construcción duradera: Cuenta con cuchillas reemplazables y un mango con recubrimiento en polvo para un rendimiento duradero
  • Cortes precisos: Su diseño se adapta a las nervaduras y se ubica automáticamente en el perfil, por lo que no es necesario medir ni marcar: solo coloca y corta.
  • Fabricada con orgullo en Australia: Diseñada y fabricada al 100 % en Warrnambool

Ahorra horas y mejora tu productividad con esta herramienta esencial para techos.


Quantity

Worldwide Shipping

Australian Made

12 Month Warranty

Orders Processed Within 5 Days

Product Specifications

Compatible profile - Ag Panel (Rib panel, 5 rib panel, Classic panel, Tuff Rib, Sturdi Panel, Grand Rib, G-Rib)
Rib height (mm) - 17
Cutting capacity – Galvanized steel (mm) - Up to 1
Cutting capacity – Pre-painted steel (mm) - Up to 1

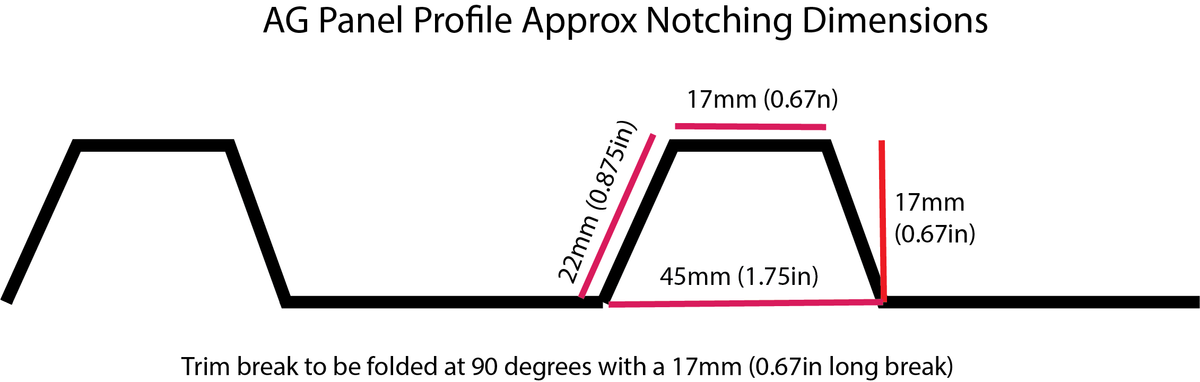

Notch width (mm) - 45 at base – 17 at top
Notch height (mm) - 17
Operation type - Manual lever
Cutting tolerance (mm) - +/- 0.5
Blades - High-strength hardened steel
Replaceable - Yes
Sharpenable - Yes
Dimensions (L × W × H) (mm) - 420x130x130
Net weight (kg) - 6
Product Code - ATN-59
RECOMMENDED ANGLE OF FOLD FOR FLASHING/TRIM - 90° (on a sheetmetal folder) AT 17MM LONG

Materials & Care

Made in Warrnambool. Backed for 12 months.

Designed and built by EERA using more than 20 years of machining, manufacturing and sheet-metal machinery experience.

Includes a 12-month warranty, with sharpenable and replaceable blades available.

Shipping

Most current orders leave our workshop within one business day.

Because every EERA Notcher is handmade and assembled by our team, please allow up to five business days for processing during busy periods.

Standard delivery: generally 5–10 business days

Express delivery: generally 1–3 business days

Need it for an upcoming job?

Contact EERA and we'll confirm current availability.

STILL NOT SURE IT'S THE RIGHT ONE?

Don't guess.

Use the EERA Profile Finder or send us your profile details and we'll help you identify the correct Notcher before you order.
